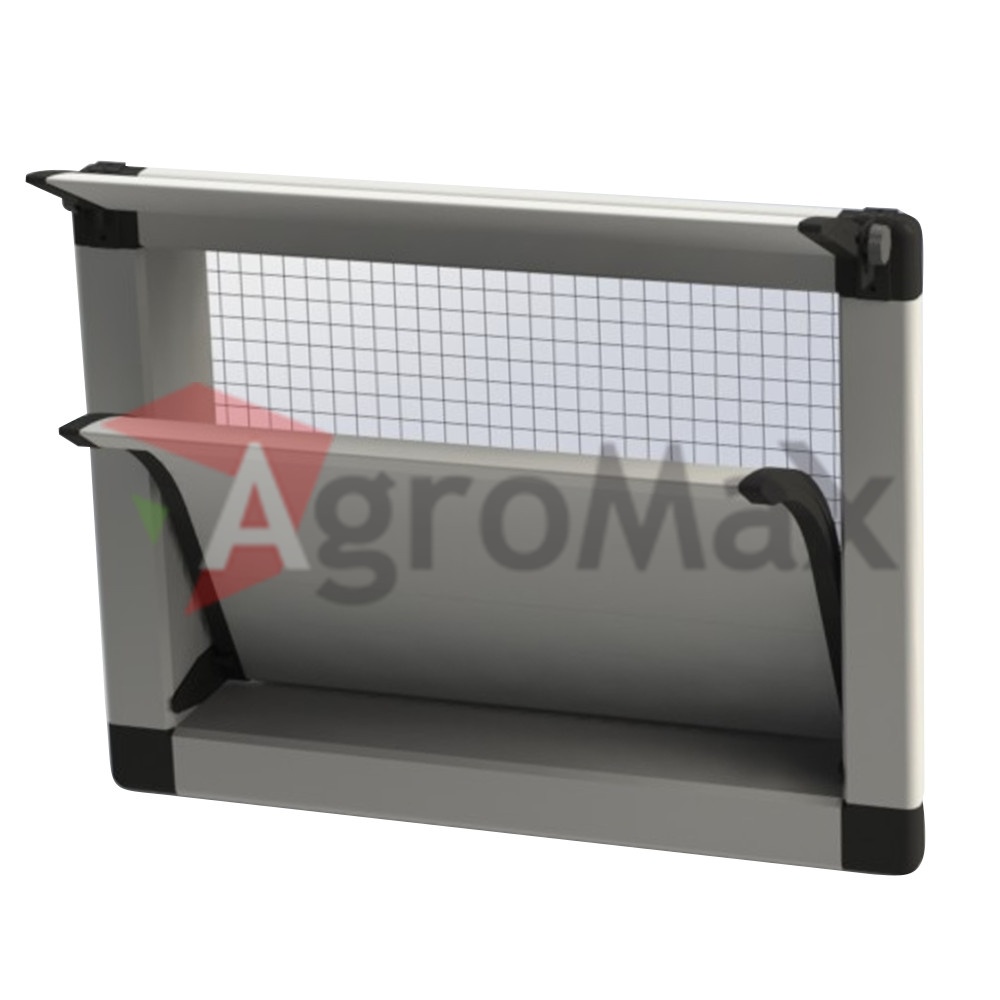

Клапан приточный стеновой WVH-DFT125, в сборе

Legend
DFT125 = deflector 125mm

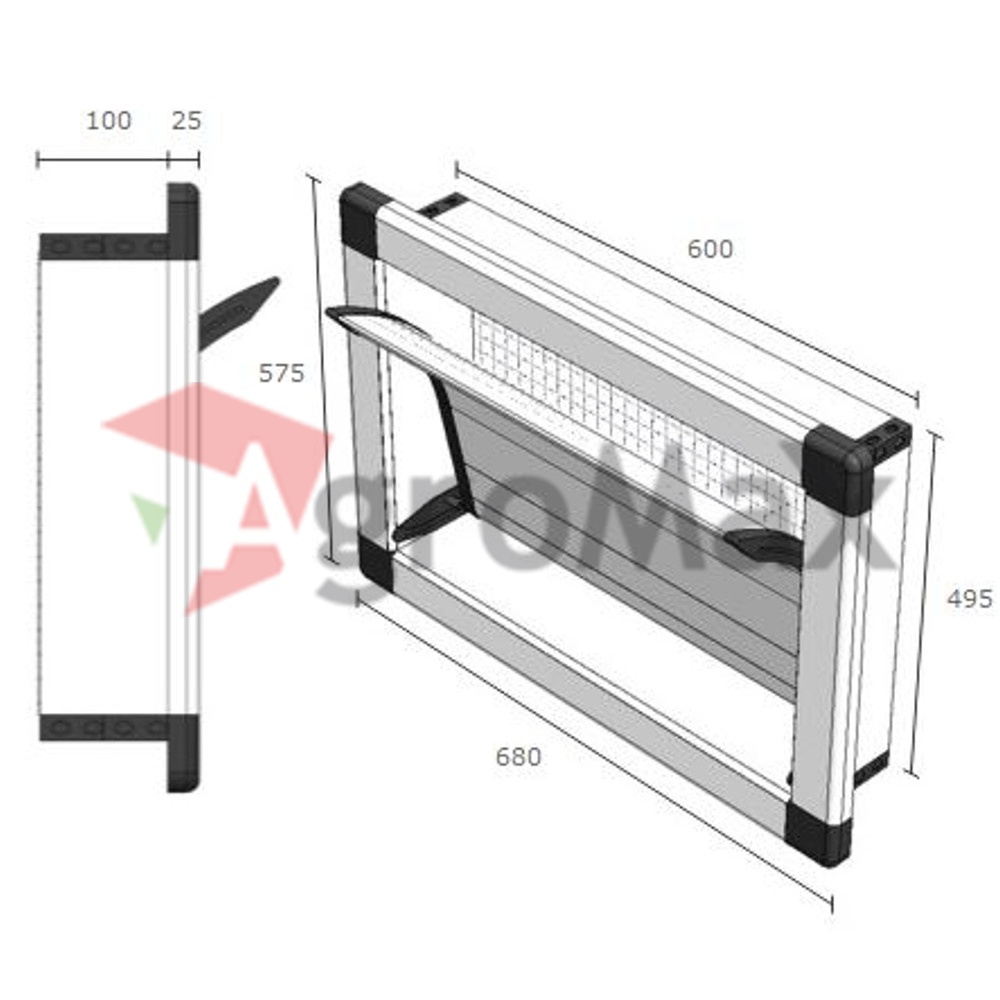

Width = 600mm (outside dimension)
Height = 495mm (outside dimension)
Mounting depth = 100mm (not included Flange)
GKK = curved flap double turning point
W/W = housing PVC White /
flap PVC White
PU = flap PVC, PU filled
FL/- = Flange on the inside /
no flange on the outside
G = bird screen 19x19mm galvanized
A = Assembled
* Operation set included
* Blocking hinge set included
Corner plate: Scan-Air
NET surface inlet: 2548cm²
Measures opening wall (w x h): 610mm x 505mm
Weight: 5.37 Kg
