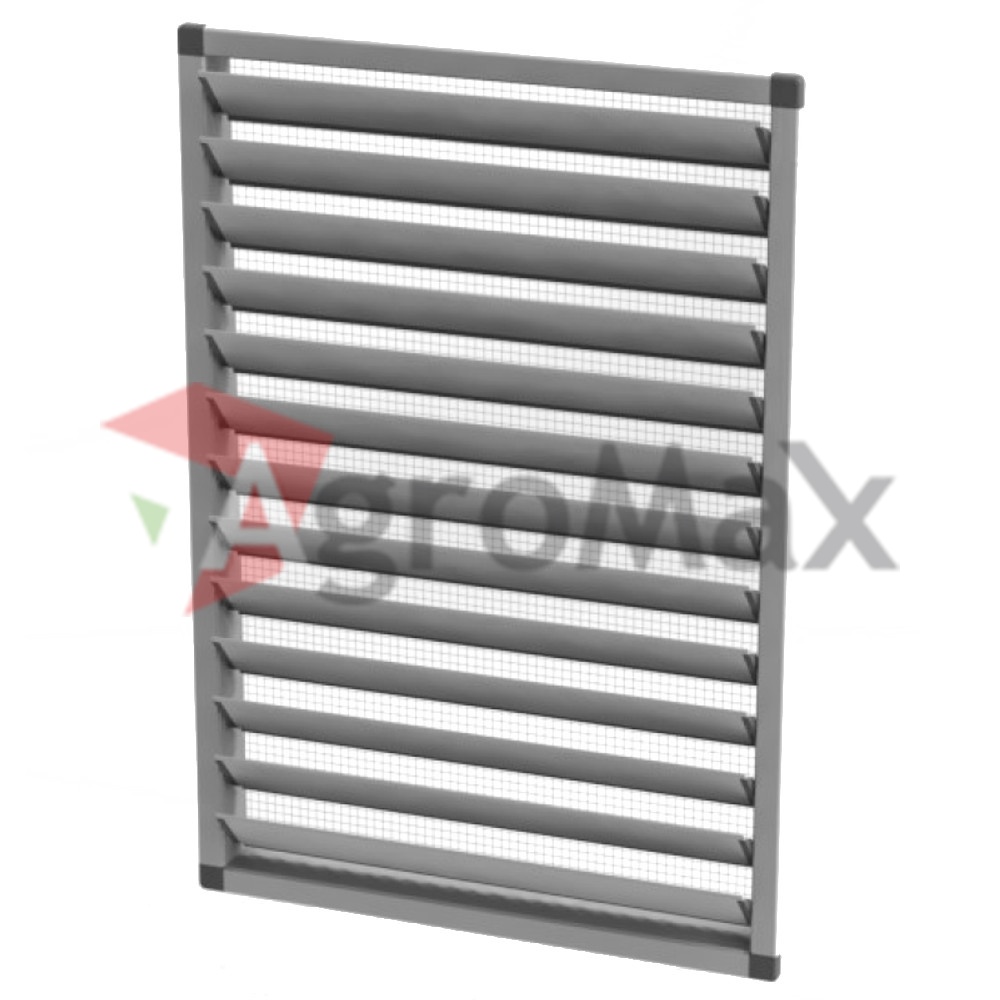

Клапан приточный туннельный JLZ-CB-V13, в сборе
Клапан приточный туннельный JLZ-CB-V13, в сборе
Код: 20246
- Бренд:
- Scan-Air
- Страна:
- Нидерланды
Описание
CB = central operation
V13 = 13 flaps vertical

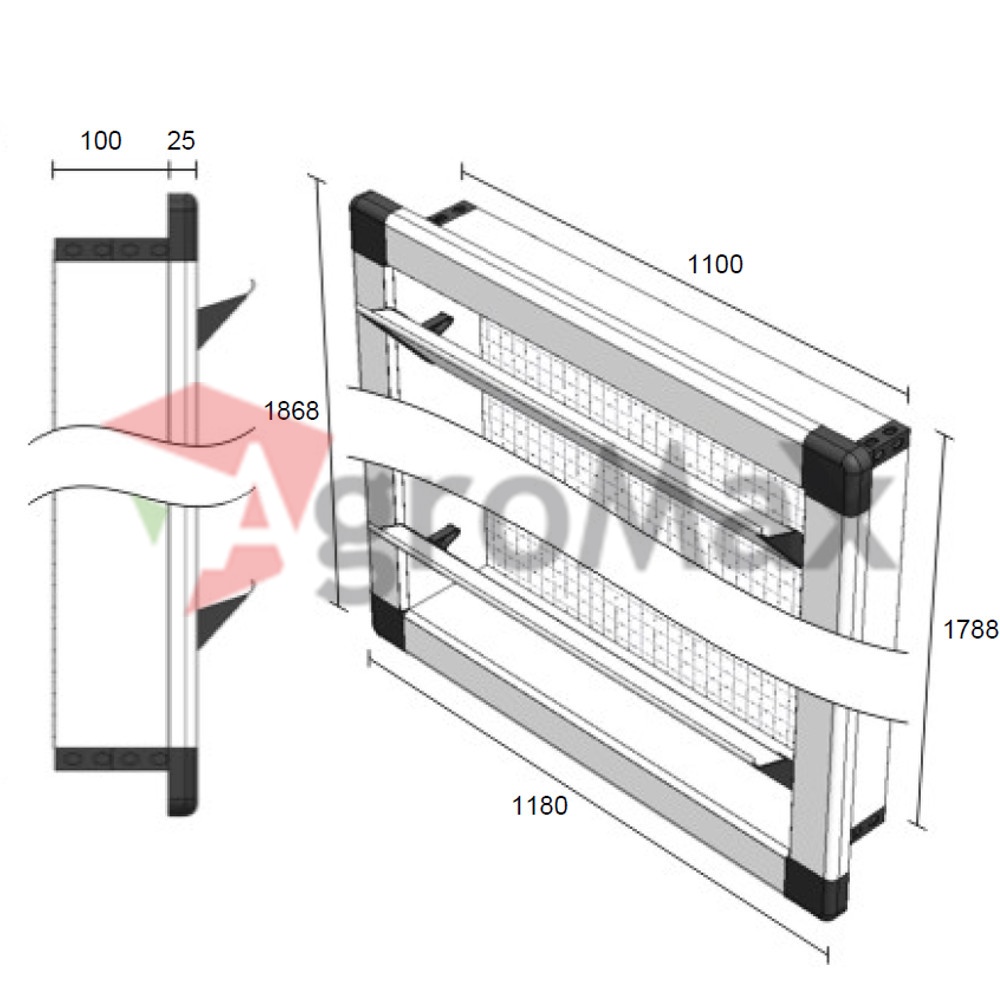

Width = 1100mm (outside dimension)
Height = 1788mm (outside dimension)
Mounting depth = 100mm (not included Flange)
W/W = housing PVC White /
flap PVC White
3K = flap four-walled PVC (3 rooms)
FL/- = Flange on the inside /
no flange on the outside
G = bird screen 19x19mm galvanized
A = Assembled
* Operation set included
Corner plate: Scan-Air
NET surface inlet: 15773cm²
Measures opening wall (w x h): 1110mm x 1798mm
Weight: 37.34 Kg
V13 = 13 flaps vertical
Width = 1100mm (outside dimension)
Height = 1788mm (outside dimension)
Mounting depth = 100mm (not included Flange)
W/W = housing PVC White /
flap PVC White
3K = flap four-walled PVC (3 rooms)
FL/- = Flange on the inside /
no flange on the outside
G = bird screen 19x19mm galvanized
A = Assembled
* Operation set included
Corner plate: Scan-Air
NET surface inlet: 15773cm²
Measures opening wall (w x h): 1110mm x 1798mm
Weight: 37.34 Kg
