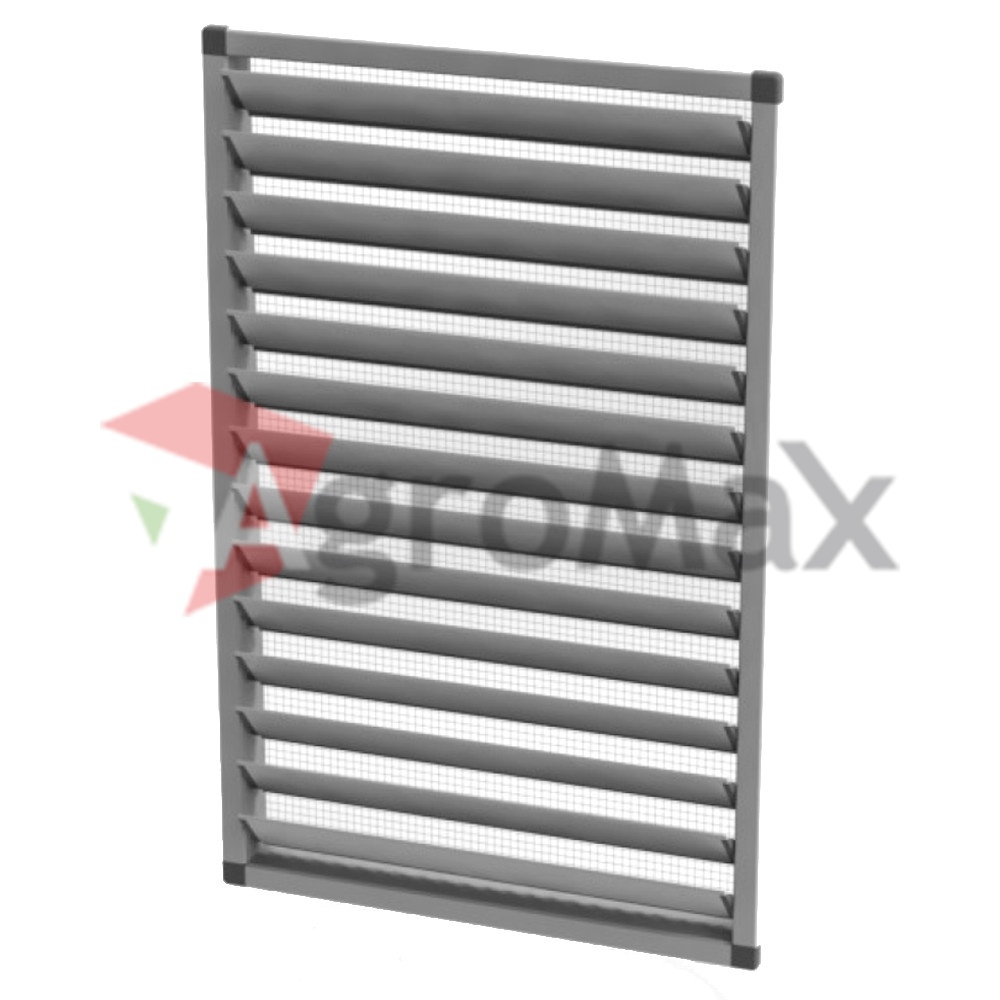

Клапан приточный туннельный JLZ-CB-V14, в сборе
Клапан приточный туннельный JLZ-CB-V14, в сборе
Код: 20247
- Бренд:
- Scan-Air
- Страна:
- Нидерланды
Описание
CB = central operation
V14 = 14 flaps vertical

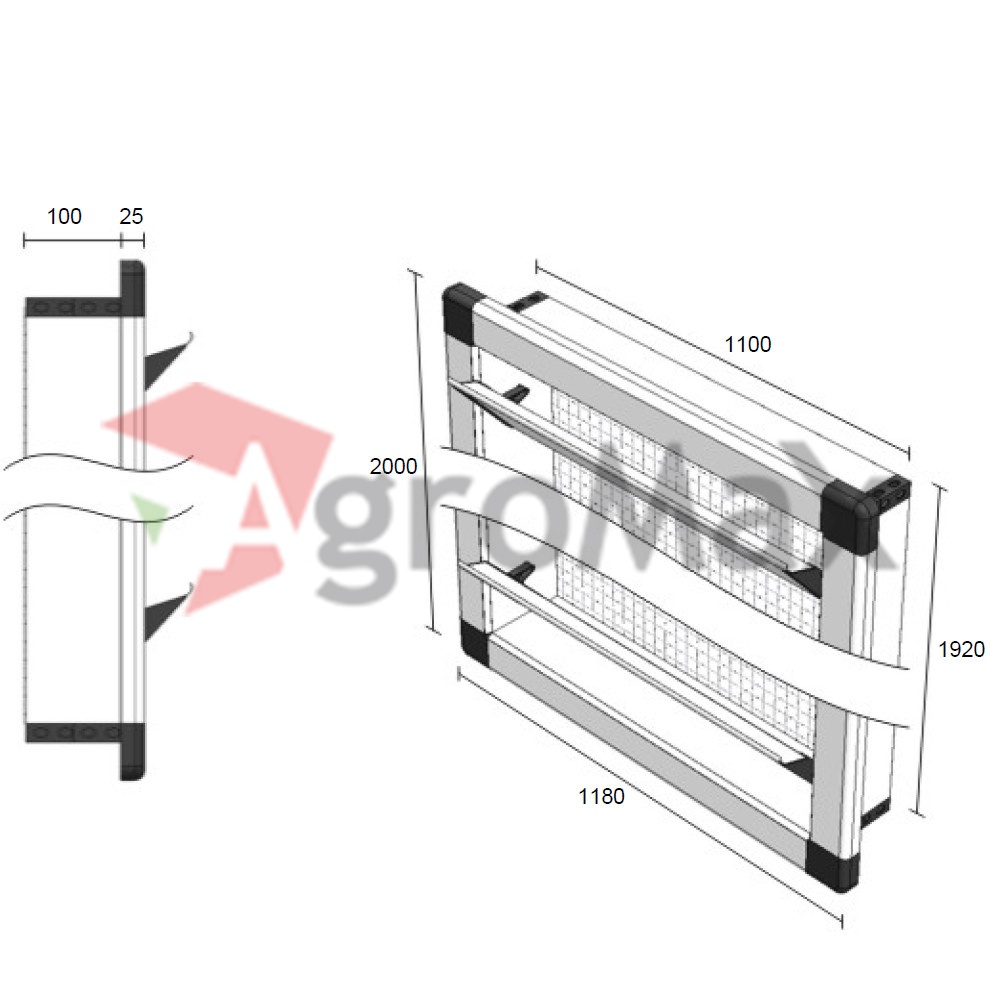

Width = 1100mm (outside dimension)
Height = 1920mm (outside dimension)
Mounting depth = 100mm (not included Flange)
W/W = housing PVC White /
flap PVC White
3K = flap four-walled PVC (3 rooms)
FL/- = Flange on the inside /
no flange on the outside
G = bird screen 19x19mm galvanized
A = Assembled
* Operation set included
Corner plate: Scan-Air
NET surface inlet: 16960cm²
Measures opening wall (w x h): 1110mm x 1930mm
Weight: 40.00 Kg
V14 = 14 flaps vertical
Width = 1100mm (outside dimension)
Height = 1920mm (outside dimension)
Mounting depth = 100mm (not included Flange)
W/W = housing PVC White /
flap PVC White
3K = flap four-walled PVC (3 rooms)
FL/- = Flange on the inside /
no flange on the outside
G = bird screen 19x19mm galvanized
A = Assembled
* Operation set included
Corner plate: Scan-Air
NET surface inlet: 16960cm²
Measures opening wall (w x h): 1110mm x 1930mm
Weight: 40.00 Kg
